HG508 Tube Mill Line for Φ219–508 mm Pipe

HG508 is the high-frequency model step covering Φ219 to 508 mm. At this diameter we build two different welding technologies, and which one suits a plant depends on batch size rather than on diameter alone.

Φ219 – Φ508 mmOutside diameter

4.0 – 16.0 mmWall thickness

1000 kWHF welder

170×170 – 400×400 mmSquare section

Send EnquiryBack to Large-Diameter Tube Mills

Technical Specification Table

Model step: HG508 Outside diameter: Φ219–508 mm Section shapes: round, square, rectangular Welding process: high-frequency induction welding, longitudinal seam Forming technology: conventional roll forming, or direct forming square Automation grade: semi-automatic, or full-automatic under PLC control Series wall range:

0.5–16 mm across HG32–HG630 Series welder power: 150–1500 kW, stepped with diameter Material yield: 93% or better by line design

HG508 starts at Φ219 mm, which is higher than every step below it in the large-diameter group: HG273 starts at Φ114 mm, and HG325 and HG426 both start at Φ165 mm. HG219 stops exactly where HG508 begins. The practical consequence is straightforward. A plant whose product list includes pipe below Φ219 mm is not served by this step alone, whatever the size of its biggest pipe.

That is a different question from the one buyers usually ask, which is about the top of the range.

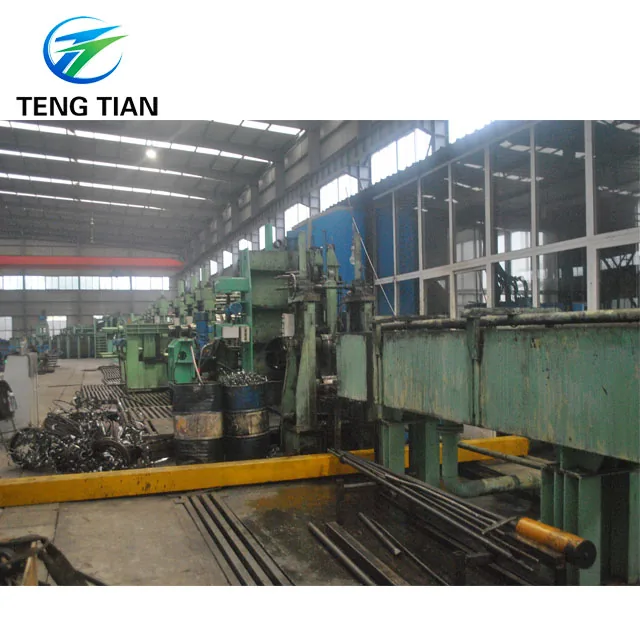

Line Configuration and Scope of Supply

• Coil car and expanding-mandrel uncoiler, tensioning the coil.
• Five-roller leveller, flattening the strip before forming.
• Automatic shear-welder, joining coil to coil.
• Spiral accumulator, buffering strip so forming continues through the join.

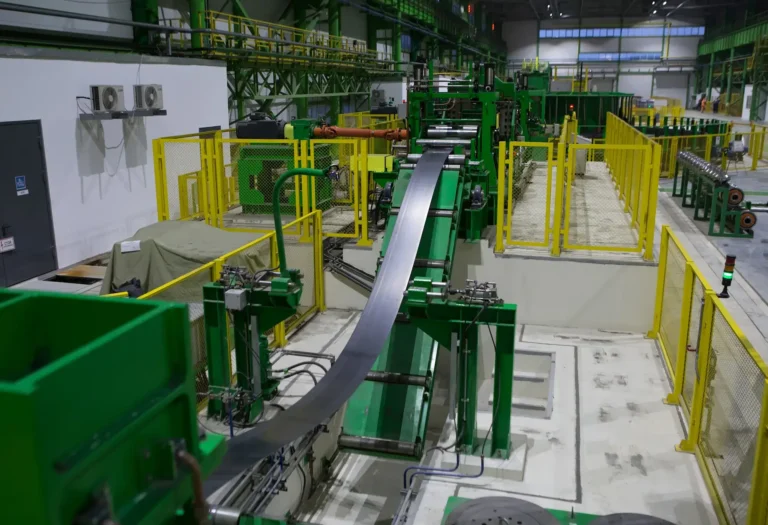

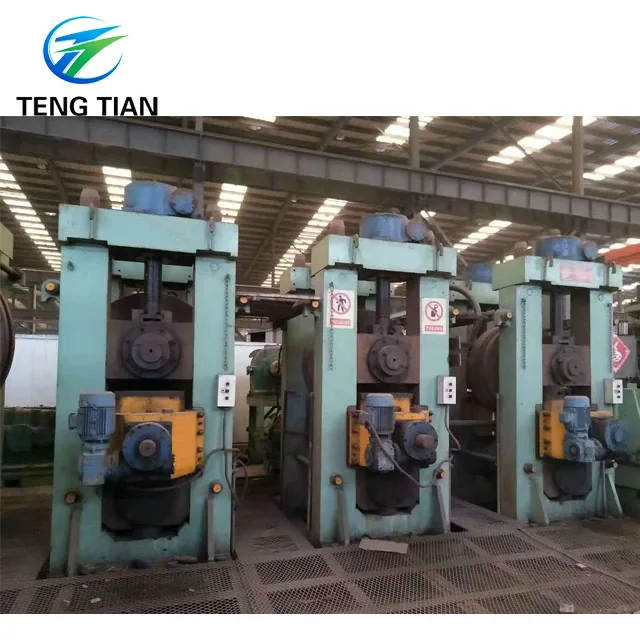

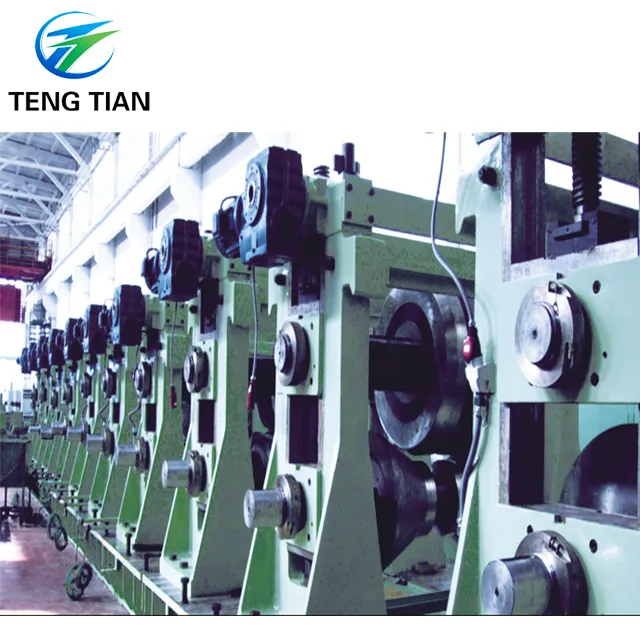

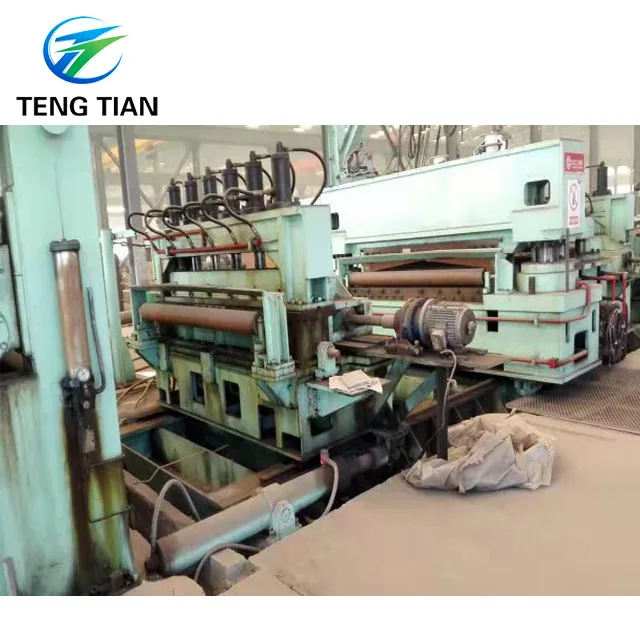

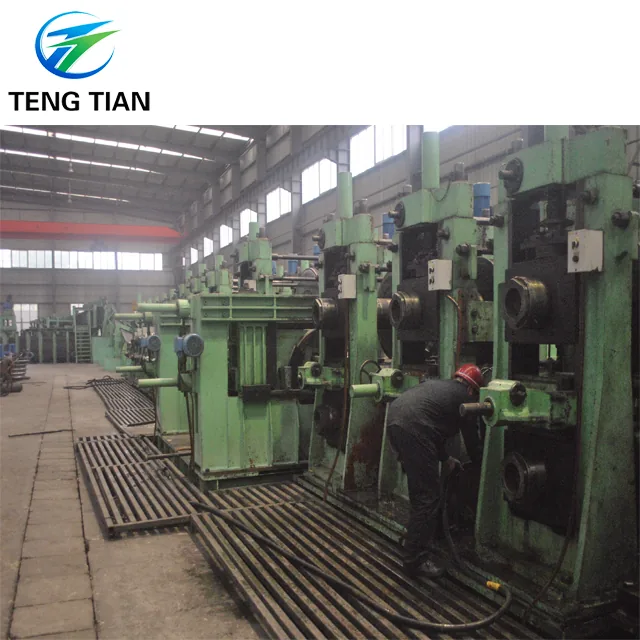

• Forming and sizing mill, the core unit for shape, weld position and dimension.
• High-frequency induction welder, sized to the pipe range.

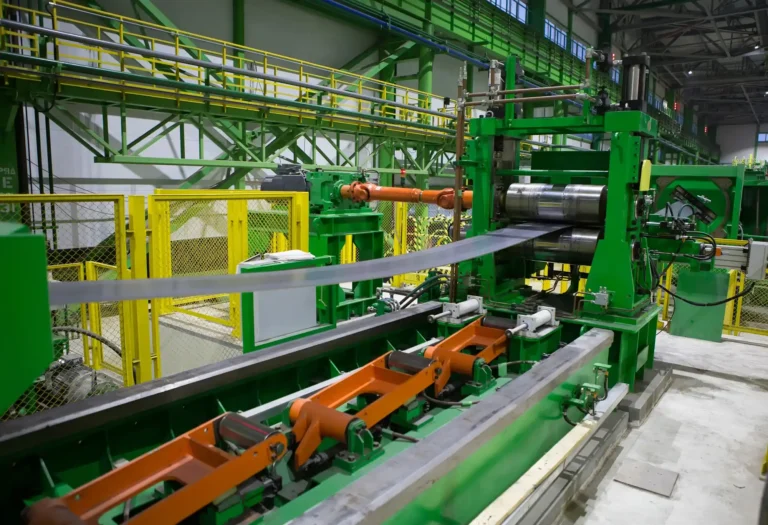

• Flying saw, cutting to length at speed.
• PLC and variable-frequency control, holding speed and repeat cut length.

The process: rolls form the strip progressively into an open tube; high-frequency current concentrates at the open edges through skin and proximity effect and heats them to welding temperature; squeeze rolls press the edges together to form the seam under pressure; the tube is cooled, sized and straightened.

Φ219–508 mm is the one part of our range where the choice of welding technology is genuinely open, because our spiral submerged-arc mills cover Φ219–820 mm on the smaller build and Φ219–1620 mm on the larger. We set out the comparison directly rather than leaving it to the buyer.

Longitudinal high-frequency welding forms strip through a roll set and closes a straight seam by induction heating, with no filler metal. It is continuous and fast, and it suits high volumes of small and medium diameter. Spiral submerged-arc welding winds strip helically at a set forming angle and welds the seam inside and out under flux.

Diameter is changed by changing the forming angle rather than by changing rolls, so one machine covers a wide band; but welding speed is 0.5–3 m/min and production is discontinuous, which suits large diameter in medium batches.

SSAW covers a wider diameter band on one machine and can produce large-diameter heavy wall, but is slower and runs in batches.

The line is the standard eight-unit high-frequency train, sized to this diameter step.

Size Change, Roll Wear and Running Cost

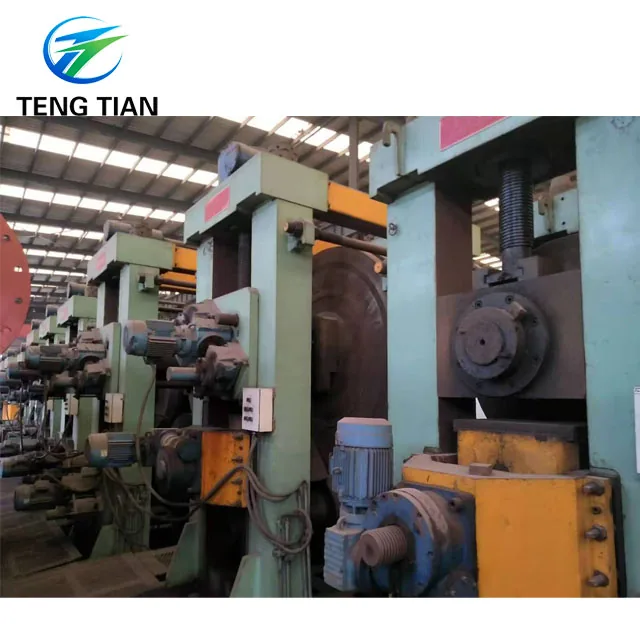

On a longitudinal mill, changing pipe size means changing rolls — unless the line is a direct-forming square build, where a combined die set is adjusted by servo, with a roll saving above 90%. Forming and sizing rolls determine shape accuracy, roundness and squareness, edge definition and dimensional consistency; roll material and heat treatment decide how long that holds. Where they are wrong, the symptoms are early wear, diameter drift, uneven corner lines and repeated re-machining at every size change. One exception: making 100 × 100 mm tube needs the upper roll on the final open stand changed.

Rolls are machined in-house on our own CNC equipment, so replacement rolls remain obtainable years after handover.

On a spiral mill, diameter is changed by changing the forming angle, so the roll set is not changed for size at all, and roll consumption there is lower than on a longitudinal line.

Consumables and wear parts on this line follow the series list — saw blades and cutting tools; impeders and induction coils; cooling water, emulsion, hydraulic oil and grease; and forming and sizing rolls as replacement items.

Ten factors decide whether the line holds quality across a run: incoming strip grade, thickness tolerance and flatness; roll material and heat treatment; welding power, frequency and speed; squeeze and seam alignment; sizing and straightening; impeder and coil condition; control and servo stability; operator setup and changeover; final inspection; and post-weld cooling matched to welding speed.

Roll consumption is one of the places where the two technologies differ in kind rather than in degree.

Applications and Output Examples

At Φ219–508 mm the application mix leans towards fluid transport rather than structural section, though both apply.

Fluid transport pipe — carbon-steel welded pipe for oil and gas transport, municipal water and drainage, gas distribution, and chemical and heating pipework, measured on weld pass rate, diameter and wall coverage, non-stop coil change, and energy and yield per tonne.

A buyer whose contract cites API 5L is buying the API configuration — high-frequency mill plus annealing, straightening, end facing, hydrostatic testing, UT and ECT — not a larger HFW step; API 508 is a step of that line, and Φ508 is the top of its OD coverage.

A buyer producing large-diameter pipe in medium batches, or needing heavy wall at large diameter, is looking at the spiral line rather than at this one.

One more distinction matters here, because it is the one buyers most often confuse. Diameter tells you which lines can physically make the pipe; it does not tell you which line should.

At Φ219–508 mm the physical answer is “either”, and the commercial answer turns on how the plant will run: continuous production of one or two sizes at volume points one way, and medium batches across a wide size list points the other. We compare the two technologies in exactly those terms, not in terms of quality.

As on every line in the series, responsibility divides as follows: the mill controls welding power, seam alignment and squeeze; sizing and straightening set dimensional accuracy and straightness; line design supports material yield above 93%. Incoming strip grade, thickness tolerance and flatness, and operation, remain the buyer’s side.

Upstream coil preparation at this diameter deserves a line of its own. Our slitting and cut-to-length line handles strip 1–12 mm thick and 800–2000 mm wide in coils up to 32 t, holding slit width to ±0.2 mm, camber to 0.5 mm per 1000 mm and burr to 4% of material thickness.

At Φ508 mm the strip is near the top of that width window, which is the point at which coil supply stops being a commodity question and starts being a specification one — a plant that has not confirmed it can get compliant coil at the width this diameter needs has not finished planning the line.

Two purchase triggers apply at this end of the range: entering a new product type, which needs a dedicated line rather than an adaptation; and a large downstream order that pushes a plant to add capacity fast enough to deliver on schedule.

Two switching triggers apply as well: after-sales and spare-part supply failing on an incumbent line, and entry into a standard-governed market such as API 5L or GOST, which requires compliant equipment rather than an upgrade.

Structural and scaffolding tube — square, rectangular and round sections for load-bearing steelwork and general machinery components, measured on corner definition and straightness, changeover efficiency and electricity per unit.

Delivery, Installation and Training

Lead time is 50–90 days.

Control cabinets, impeders and induction coils, forming rolls and cutting tools travel in moisture-protected wooden cases with a spare-parts pack; heavy large-diameter frames ship bare, braced on cradles with designated lifting points and rust protection — an arrangement we use specifically for heavy lines in the HG508–630 class shipped by sea.

Five operating steps need different levels of training: coil loading and threading, and shear-welding a coil join in time with the accumulator, need operator training; setting a new size needs a trained change crew; setting welder power, welding speed and squeeze and then running the process needs process-level training; cutting and collecting is routine.

After handover, support is a first reply through a single named point of contact, all-hours online support, on-site dispatch when required, and direct spare-part shipment. Behind that sits in-house CNC roll machining, an engineering team of twenty averaging twenty years each, and an owned production base open to factory audit.

Certifications: GB/T 19001-2016 / ISO 9001:2015 (quality management system, certificate No. 18524Q11269R2S); CE for welded pipe equipment, UDEM No. M.2022.206.C72171. For pipe made to API 5L, see our separate API line-pipe configuration.

Export packing is specified per item, and at this diameter the split matters.
